Certifications:
| PRODUCT | T205 EDGE Computer 4GB | T205 EDGE Computer 8GB |
| AI Computing power | 20 TOPS | 40 TOPS |
| GPU | 512-core NVIDIA Ampere architecture GPU, 16 Tensor Cores 625 MHz | 1024-core NVIDIA Ampere architecture GPU, 32 Tensor Cores 625MHz |
| CPU | 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 | |
| Memory | 4GB 64-bit LPDDR5 34GB/s | 8GB 128-bit LPDDR5 68 GB/s |
| System storage | 128GB SSD Standard config | |
| video coding | 1-2 CPU cores support 1080p30 | |
| Video decoding | 1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265) | |
| External interface | ||
| Ethernet | 1xRJ45 | |
| Wireless network | 802.11ac WiFi 2.4G/5.8G | |
| Video output | 1×HDMI 2.0 TYPE A | |
| USB | 2×USB 3.0TYPE A（5V, 1A）1xMicro-USB2.0 OTG | |
| Video output | 1×HDMI 2.0 TYPE A | |
| M.2 port | 1xM.2 Key M（PCIE NVME 2242 SSD） | |
| Power input | 12-24V DC | |
| Temperature | -20-65℃ | |
| Heat dissipation | Fan cooling | |
| Size | 109.2mm×62.5mm ×46.3mm | |
1. 12 months warranty. For quality problem, we will send you a new one.
2. Technical support. We provide online one-to-one technical support to help you shorten your development cycle.
3.Pre-installation of drivers. We pre-install drivers of many kind of devices for saving you the trouble of driver development.

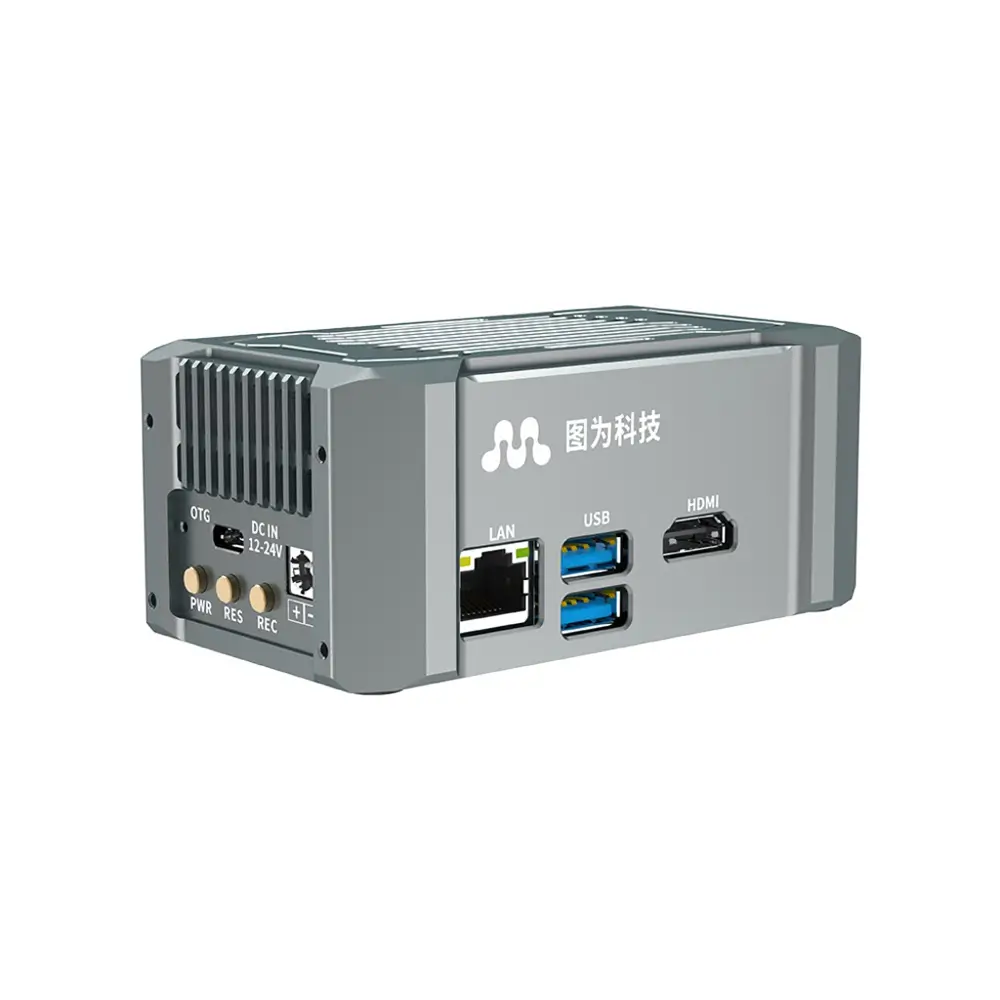

The core module of T205 is NVIDIA Jetson Orin Nano (4GB/8GB), smaller than a credit card. This mass-produced module system (SOM) can provide strong support for deploying AI on edge devices in multiple industries, including smart cities, smart factories, agriculture, and robotics.
| Jetson Orin Nano 8GB | Jetson Orin Nano 4GB | |
| AI Performance | 40 TOPS | 20 TOPS |
| GPU | 1024 NVIDIA Ampere architecture Gpus with 32 Tensor cores | 512 NVIDIA Ampere architecture Gpus with 16 Tensor cores |
| CPU | 6 core Arm® Cortex® A78AE v8.2 64 bit CPU 1.5MB L2 + 4MB L3 | |
| Memory | 8GB 128 bit LPDDR5 68 GB/s | 4GB 64 bit LPDDR5 34 GB/s |
| Storage | (External NVMe support) | |
| Video Encode | 1080p30, supported by 1-2 CPU cores | |
| Video Decode | 1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265) | |
| CSI Camera | Up to 4 cameras (8 *** via virtual channel)，8 channels MIPI CSI-2，D-PHY 2.1（up to 20 Gbps） | |
| PCIe | 1 x4 + 3 x1 （PCIe 3.0、Root port and endpoint） | |
| USB | 3x USB 3.2 2.0 (10 Gbps) 3x USB 2.0 | |
| Network | 1x GbE | |
| Display | 1x 4K30 multi-mode DP 1.2 (+MST)/eDP 1.4/HDMI 1.4** | |
| Other I/O | 3x UART、2x SPI、2x I2S、4x I2C、1x CAN、DMIC and DSPK、PWM、GPIO | |
| Power consumption | 7 W – 15 W | 7 W – 10 W |
Application Fields:
Support multi scenario applications,
support parallel operation of 5 algorithms for 16 video streams
1 Practical Application in Security Monitoring Scenarios
2 Practical Application in Smart Gas Station
Practical Application in Smart Petroleum
Simultaneously supporting channel video analysis
Support smoke, fire, personnel area monitoring, personnel fall,
safety helmet recognition, tooling, gauges, oil level, valve direction
4 Practical Application | Identification of unidentified Objects in Power Transmission
Simultaneously supporting 4-channel video analysis
Unidentified object recognition, fireworks, engineering vehicles
Subsequent additions, abnormal insulators/pins/bird spikes, etc
If you need any customized services, please feel free to contact us.
